VR Models and Apps for Oculus Quest II and Unreal Engine

This page contains 3D models which were developed using Solidworks and Blender and models which can be imported into Unreal Engine 5 or Second Life. In adding links to some basic VR apps are provided at the endo of the webpage. Please feel free to use any of this material.

Presentation on developing VR models

• Using Oculus Quest II VR Headset in Engineer and Technician Education RevB.pptx
• Building a small house using Solidworks and Blender for Second Life Rev.pptx
• Creating Solidworks Model for SCME Pressure Sensor.pptx
• Making a Mountain using Second Life Terrain Part 1.pptx
• Making a Mountain using Second Life Terrain Part 2.pptx

VR Models for Oculus Quest II and Unreal Engine

Model	Solidworks	STL for 3D Printing	Blender	FBX for UE	DAE for Second Life

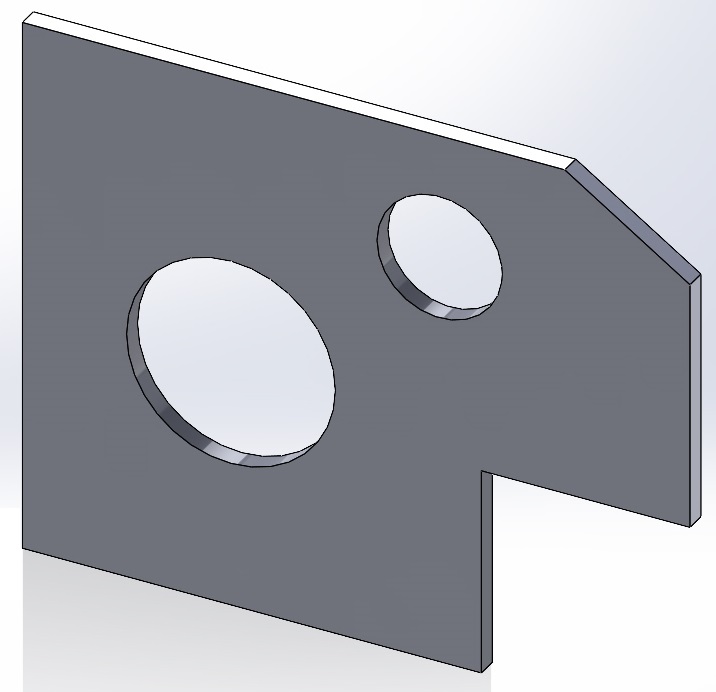

	Assignment1.SLDPRT	Assignment1.stl	Assignment1.blend	Assignment1.fbx	Assignment1.dae

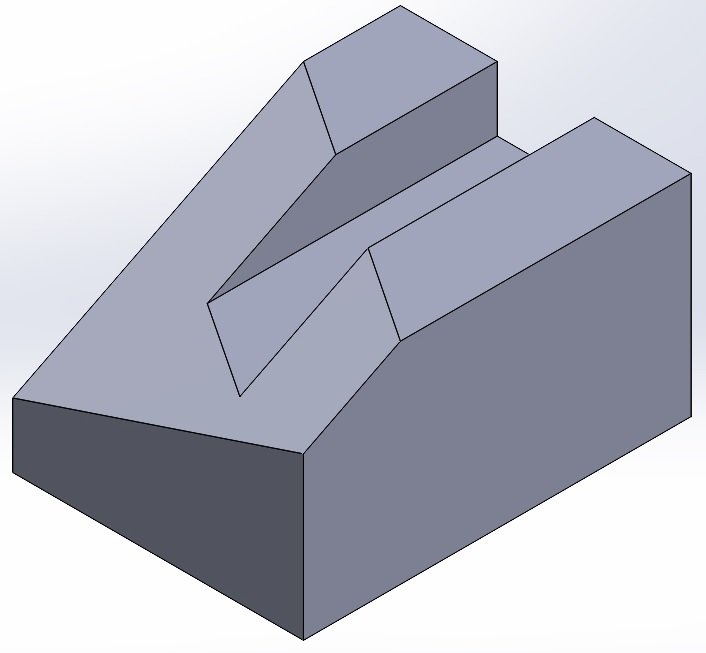

	3D Part 1.SLDPRT	3D Part 1.stl	3D Part 1.blend	3D Part 1.fbx	3D Part 1.dae

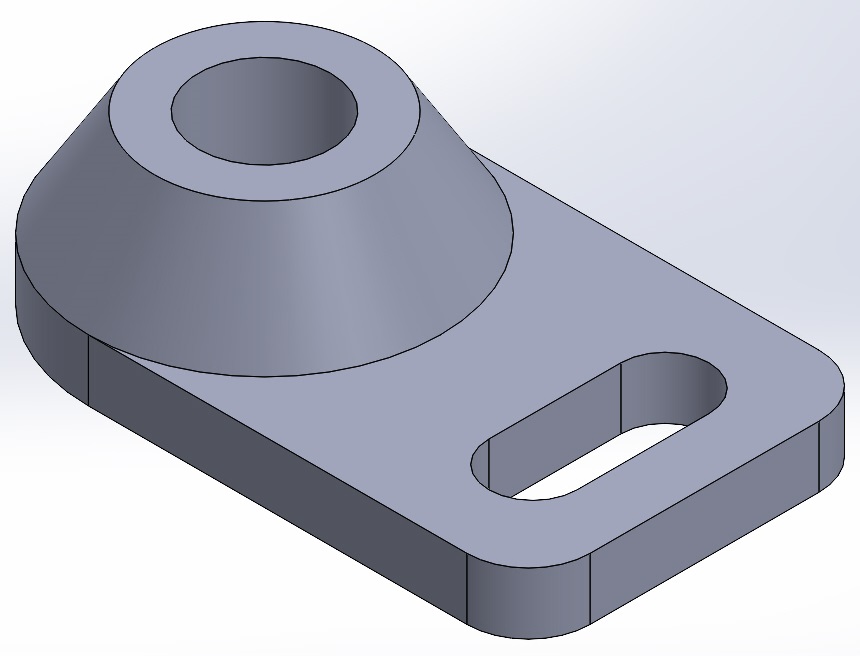

	3D Part 2.SLDPRT	3D Part 2.stl	3D Part 2.blend	3D Part 2.fbx	3D Part 2.dae
	3D Part 3.SLDPRT	3D Part 3.stl	3D Part 3.blend	3D Part 3.fbx	3D Part 3.dae

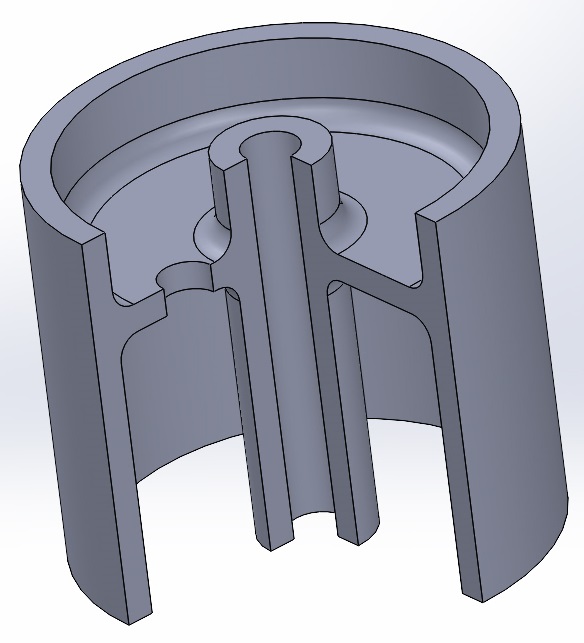

	3D Part 4.SLDPRT	3D Part 4.stl	3D Part 4.blend	3D Part 4.fbx	3D Part 4.dae

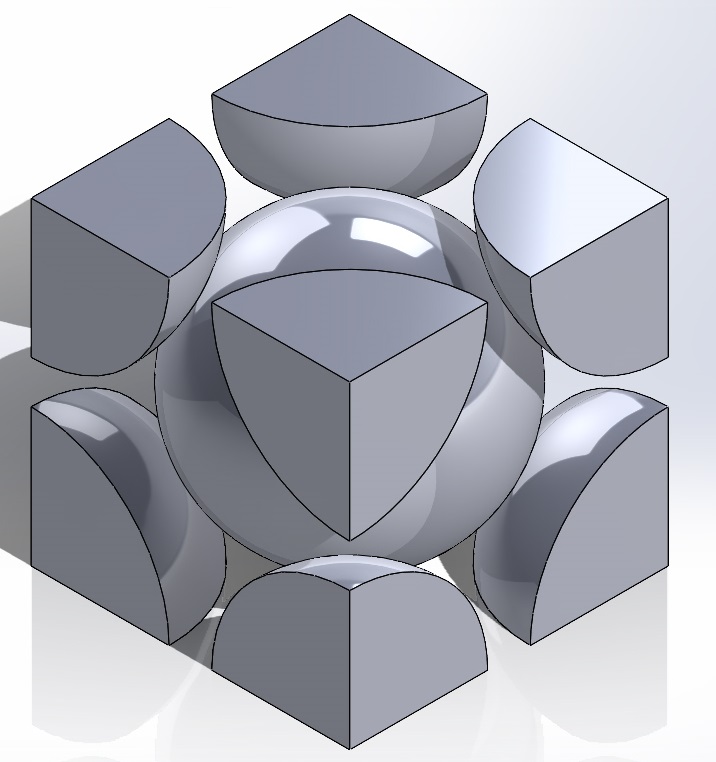

	BCC Crystal.SLDPRT	BCC Crystal.stl	BCC Crystal.blend	BCC Crystal.fbx	BCC Crystal.dae

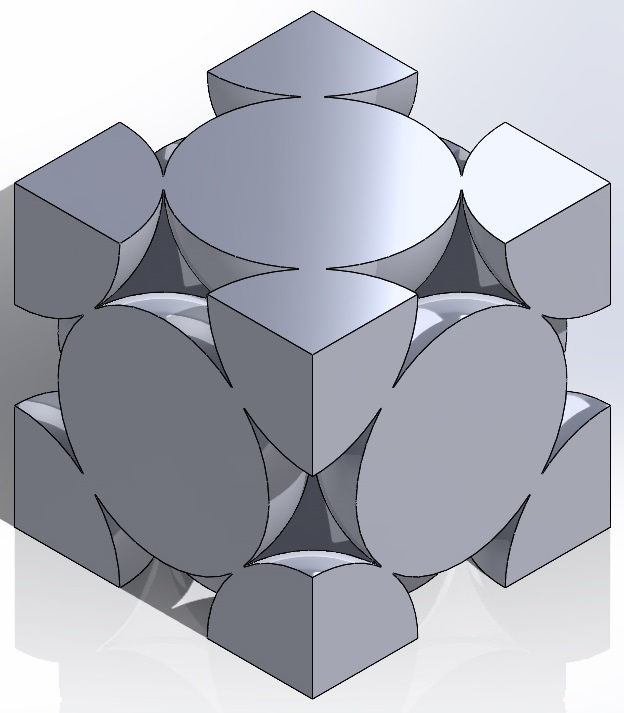

	FCC Crystal.SLDPRT	FCC Crystal.stl	FCC Crystal.blend	FCC Crystal.fbx	FCC Crystal.dae

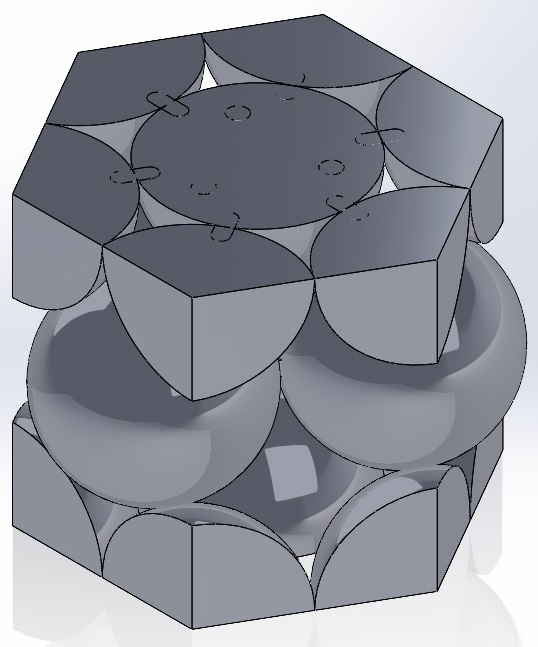

	HCP Crystal.SLDPRT	HCP Crystal.stl	HCP Crystal.blend	HCP Crystal.fbx	HCP Crystal.dae

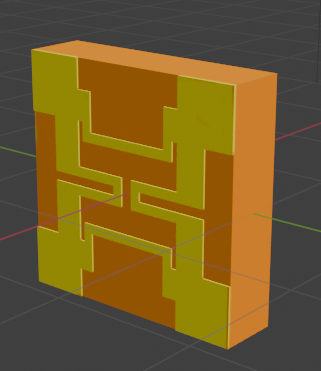

	MEMS Pressure Sensor.SLDPRT	MEMS Pressure Sensor.stl	MEMS Pressure Sensor.blend	MEMS Pressure Sensor.fbx	MEMS Pressure Sensor.dae
		sm_house.stl	sm_houseC.blend texture	sm_house2f.fbx	sm_houseC.dae
			mountain_onlyD1a.blend texture	mountain_onlyD1a.fbx

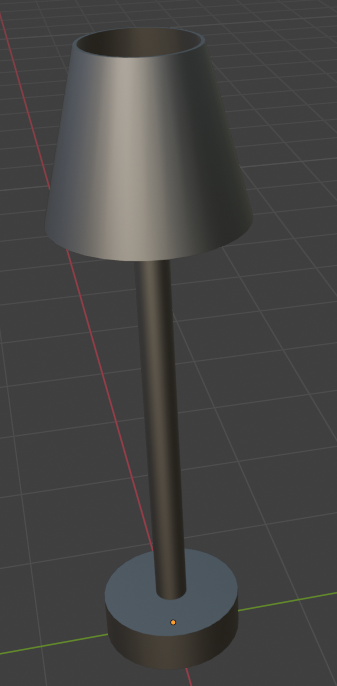

			Lamp1.blend	Lamp1.fbx	Lamp1.dae

VR Apps for Oculus Quest II and Unreal Engine

Test1 - size 415 MB this is a simple test with a blank scenario. This should be the smallest size package but there may be other things that could be deleted.

Test2 - size 588 MB this is the simple level with three models that have been imported: One from Quixel Bride, a model previously developed from the Medial app, and STL file from Thingiverse (https://www.thingiverse.com/thing:18224). The STL file was converted using Blender. Used Geometry "face" smoothing and UV maps were updated in UE5. Also, the STL file had to be scaled in Blender because of it's massive size.

Test3 - size 452.2 MB includes the basic level and 3 crystal unit cells that were previously developed. The models were made grabbable so you could pick them up and throw them. I also modified the floor texture so it would have a repeating pattern. This makes the floor look more realistic.

Test4 - underdevelopment but my goal is to make it so that there is a position reset with a button for the level. May also add music and/or audio to the level.

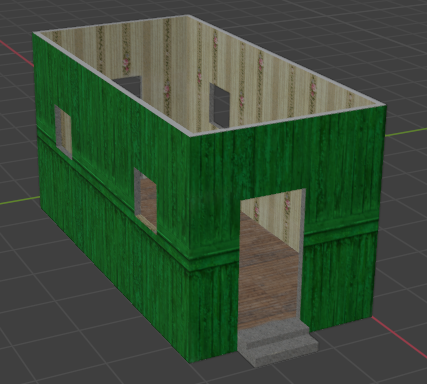

Test5 - size3 437.9 MB is based on the sm_house model with texture developed for second life. An FBX model was created and I was able to (I think) use the physics file for the collisions for the house. The user can walk (teleport) through the house now just like you can do in Second Life.

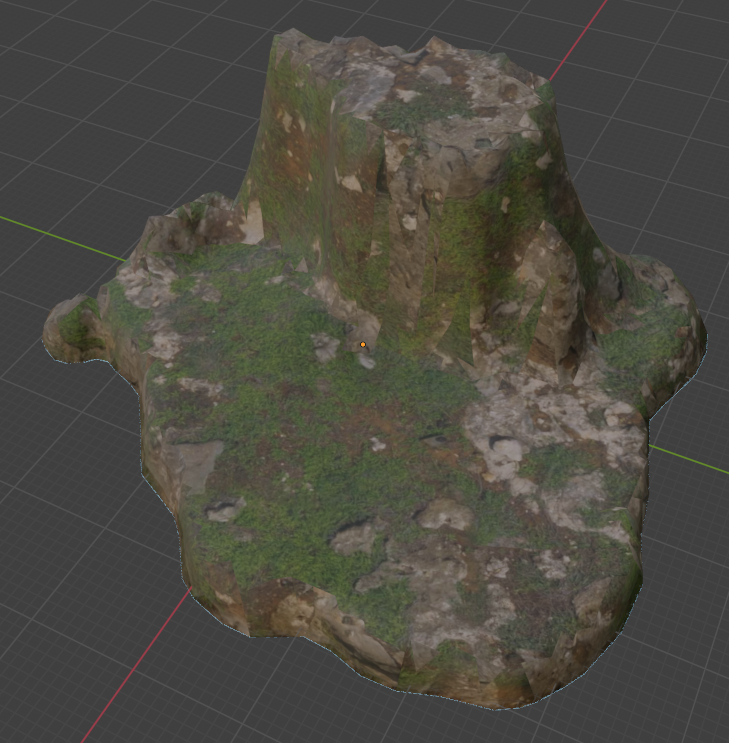

Test6 - size 419.3 MB is a mountain that was build from the Second Life terrain at the ivytech engineering island. This mountain was converted into a mesh model as a DAE file and then imported into Blender. Blender was used to simplify the mesh and add a texture. The mesh was simplified and two output files were created: an FBX with a texture and a STL which could be 3D printed. The FBX file was imported into Unreal Engine and placed in a basic level. This model produced a skeletal mesh which was converted into a static mesh in Unreal Engine. A collision was added as "Use Complex Collision as Simple" so that the user could transport to the surface of the mountain but work is still needed.

NewStuffCAD - size 562.6 MB - contains CAD models that were created using Solidworks with audio files that are launched on grabbing the model. The model can be grabbed and inspected and released. Physics is not enabled on these models so they will stay in space where you release them.

ArtGallery1 - size 1.31 GB - contains sculptures and Norman Rockwell paintings with audio files that work with grab blueprint buttons.

Medical2 - size 662.8 MB contains human and dinosaur skulls with posters above each skull. No blueprint is added for this scenario and light level issues has been corrected.
